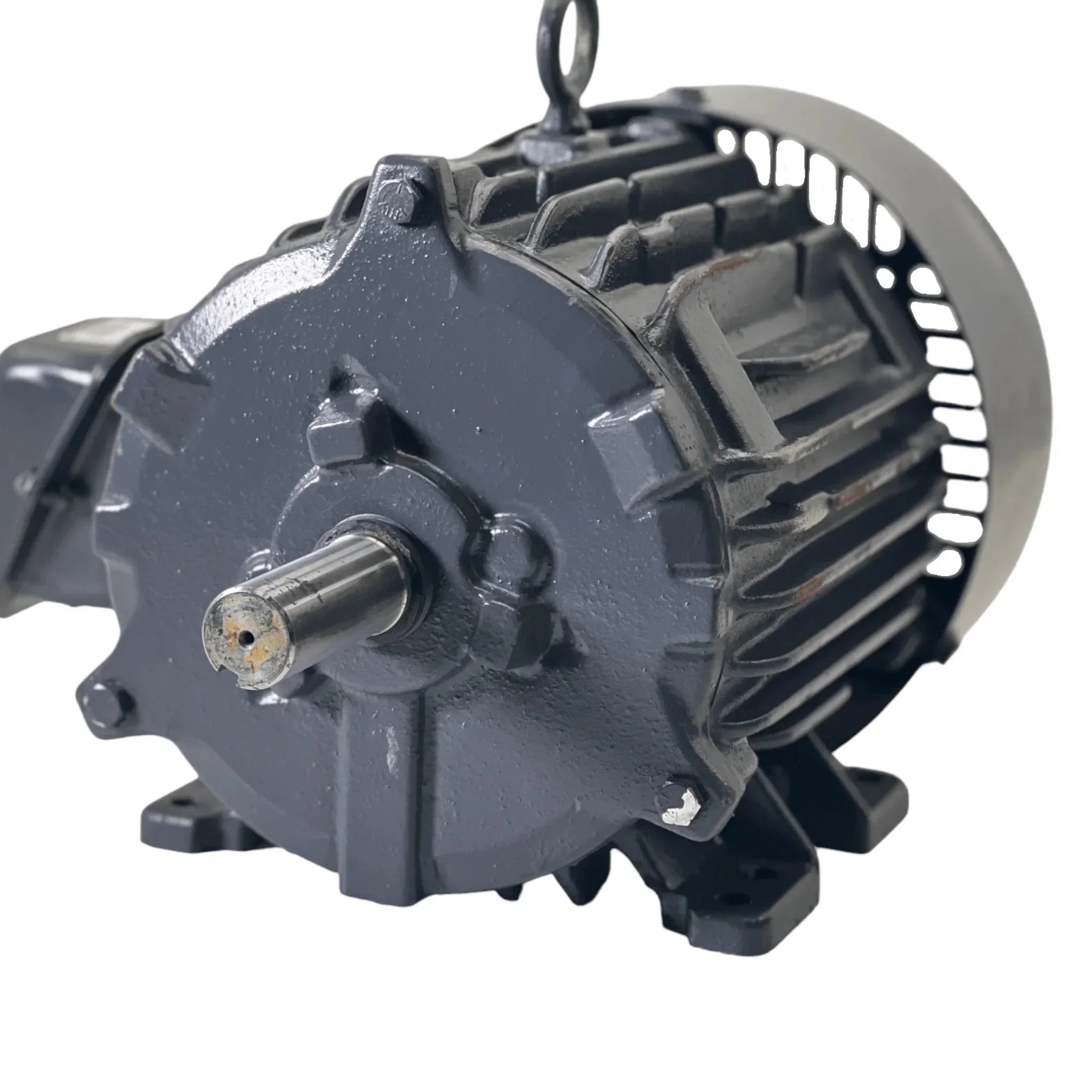

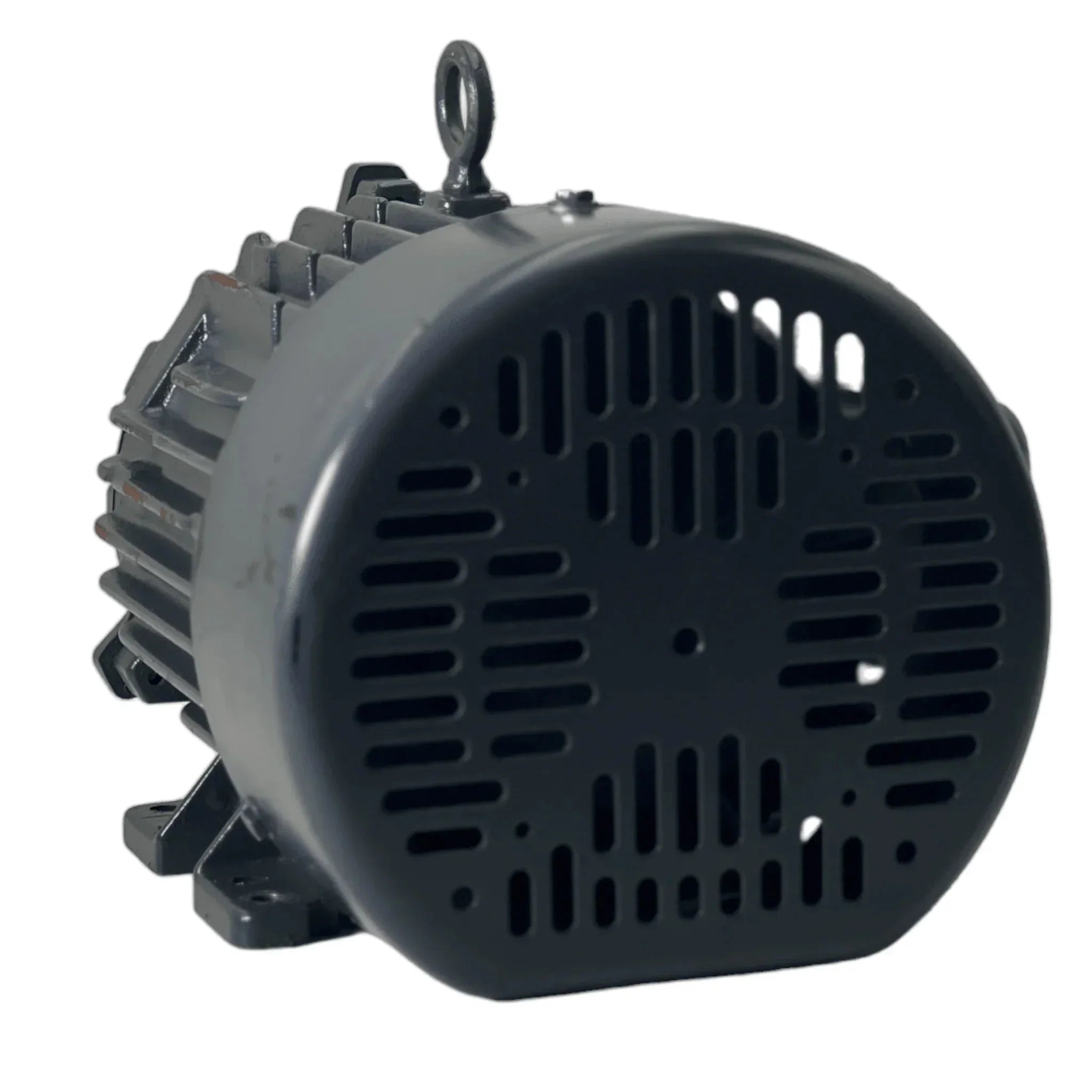

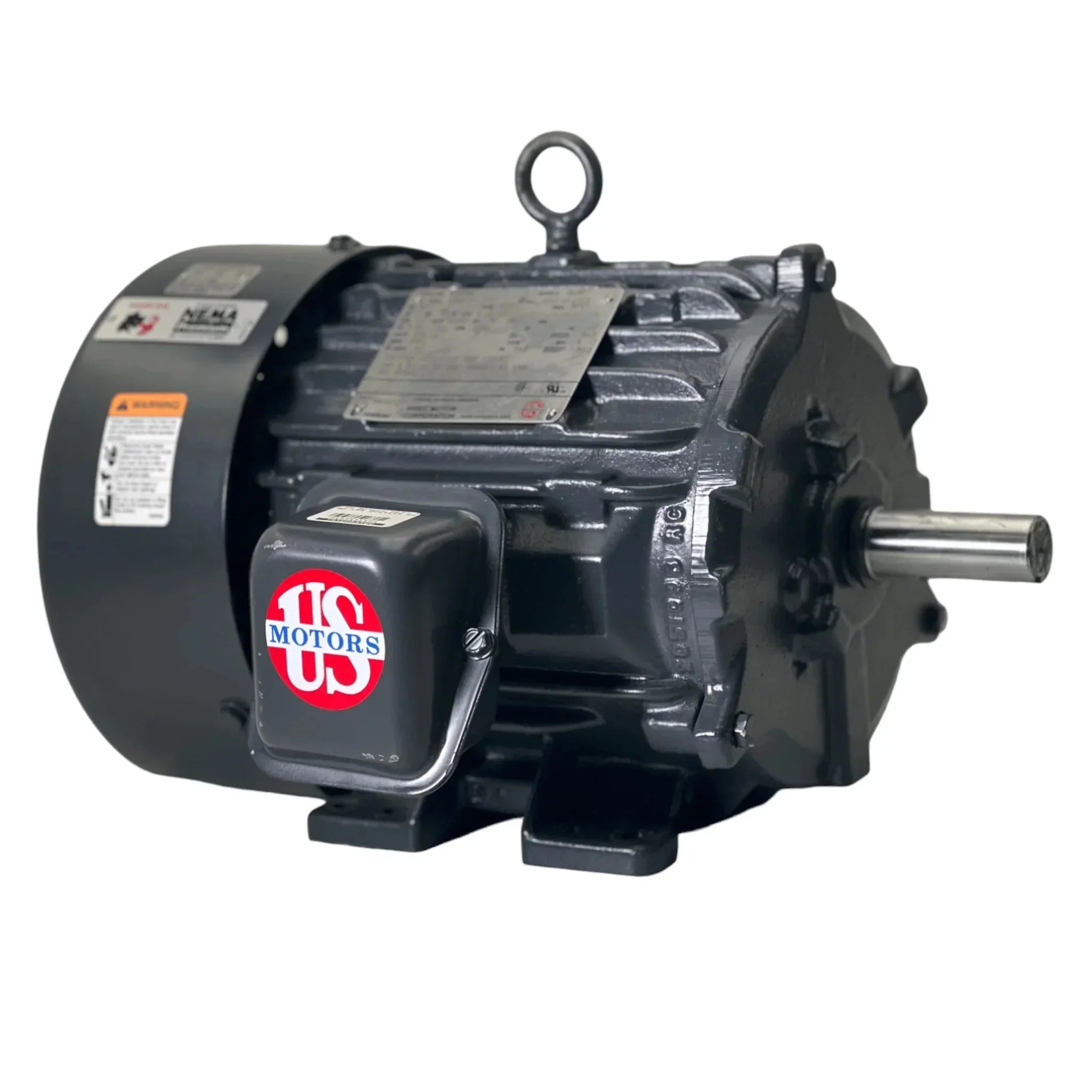

HD3P1G US Motors AC Motor GL07 Model 3 HP 3540 RPM 3.3 Amps
This us motors ac motor gl07 model 3 hp 3540 rpm 3.3 amps from US MOTORS is designed to deliver reliable performance and durability.
Key Features
- Designed to match or exceed applicable specifications
- Provides the function required for the intended system or assembly
- Built for dependable performance and service life
- Backed by US MOTORS quality and engineering.
Specifications
| Brand | US MOTORS |
| Part Type | US Motors AC Motor GL07 Model 3 HP 3540 RPM 3.3 Amps |
| SKU | HD3P1G |

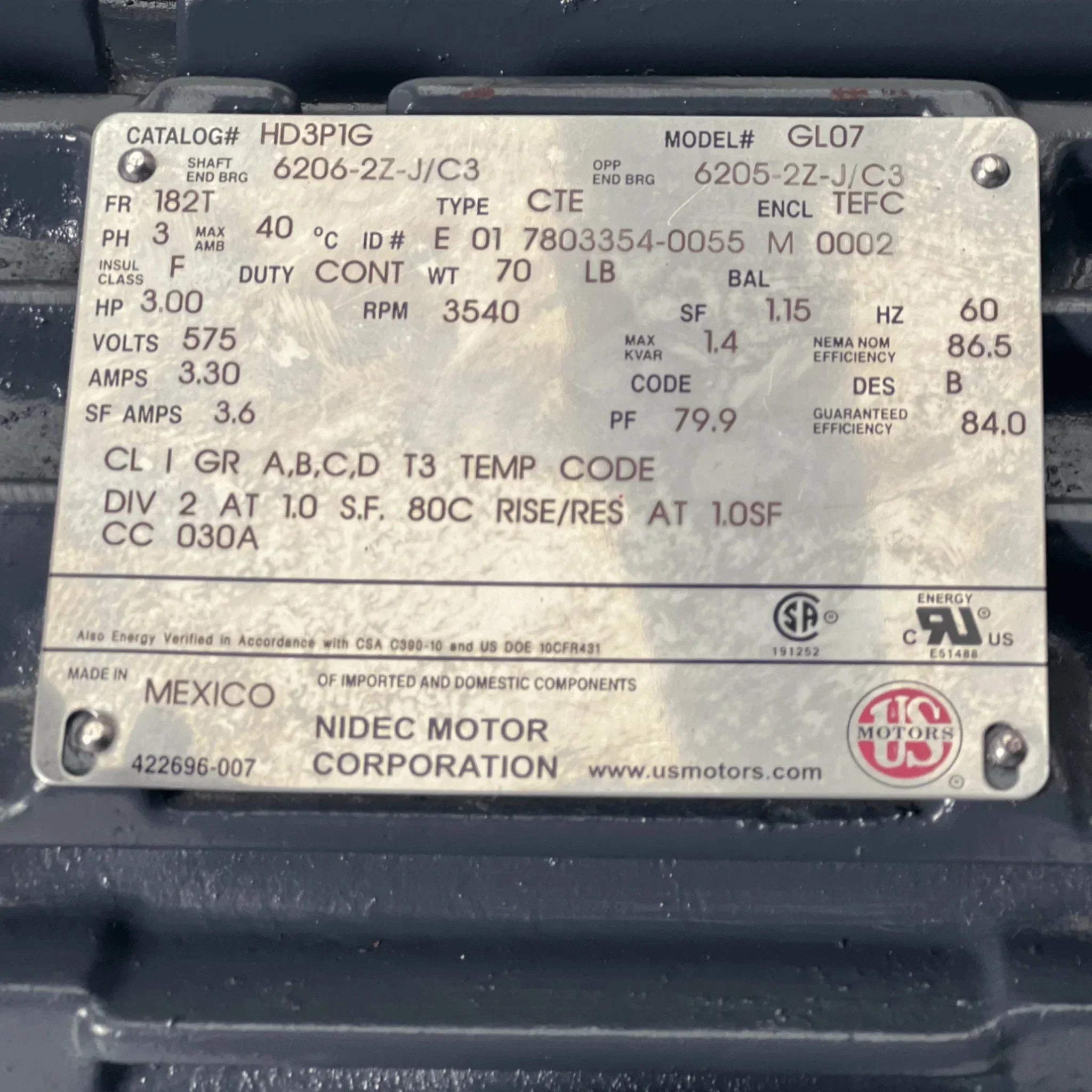

| OEM Cross Reference | 704209AT Technical Specifications Manufacturer: US Motors Series: US Motors – General Purpose Three Phase – TEFC – World Motor Hostile Duty - Premium Efficient Model #: HD3P1G Warranty: 1 Year Manufacturer Horsepower: 3.0 HP Input Voltage(s): 540 - 600 VAC Input Input Phase: Three Phase Input RPM: 3540 RPM Frequency: 60 Hz Max Current: 3.3 Amps @ 540 - 600 VAC Input, Motor Shaft: Keyed Frame: 182T Frame Service Factor: 1.15 Height: 15 Inches Width: 17 Inches Depth: 20 Inches Weight: 80 lbs |
| UPC | 704209AT |
| Weight | 80.0 lb |
Brand Information
Brand: US MOTORS
US MOTORS supplies quality parts and components designed to provide dependable performance and long service life in their intended applications.
Installation Notes
- Verify part number, specifications, and application before installation.
- Professional installation is recommended.
