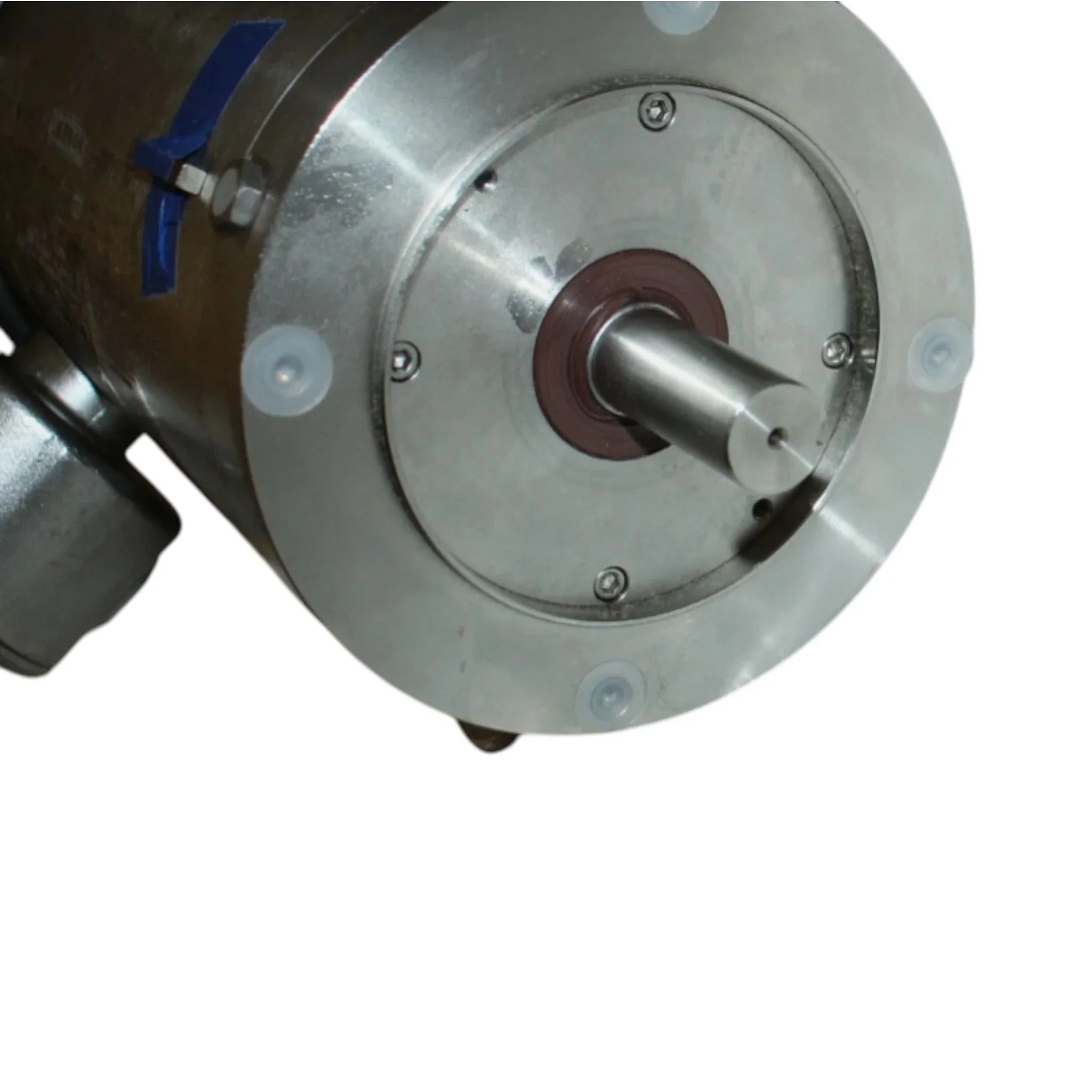

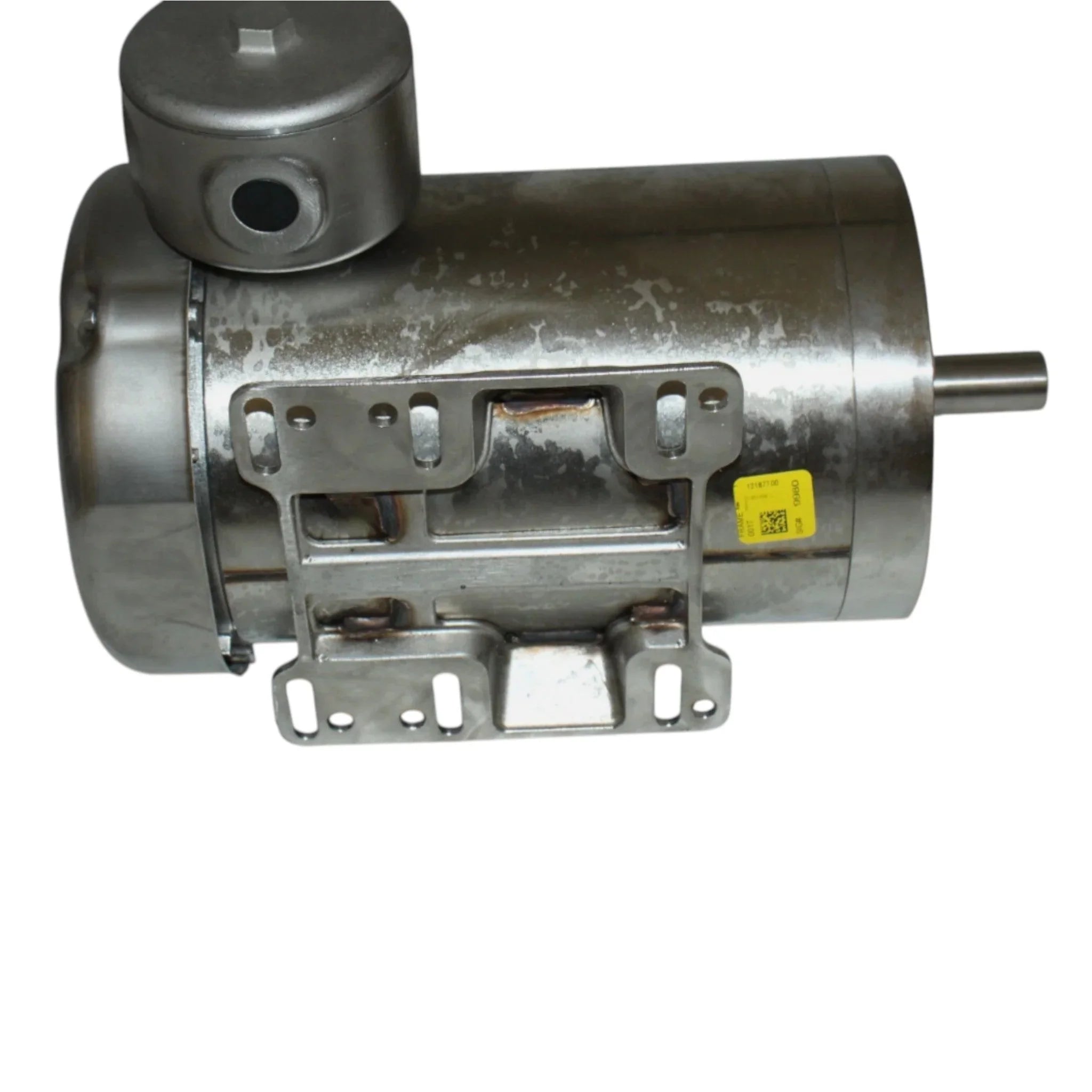

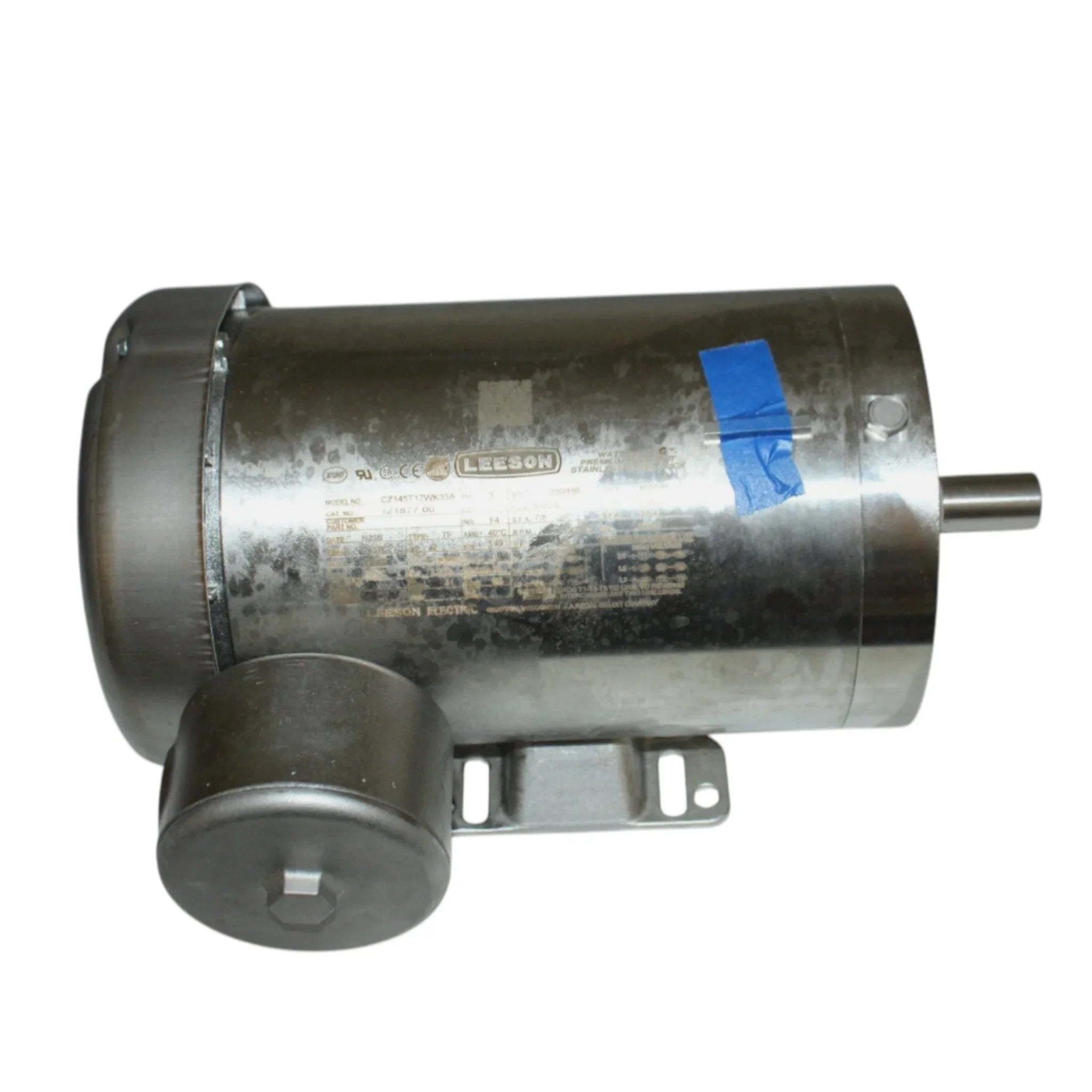

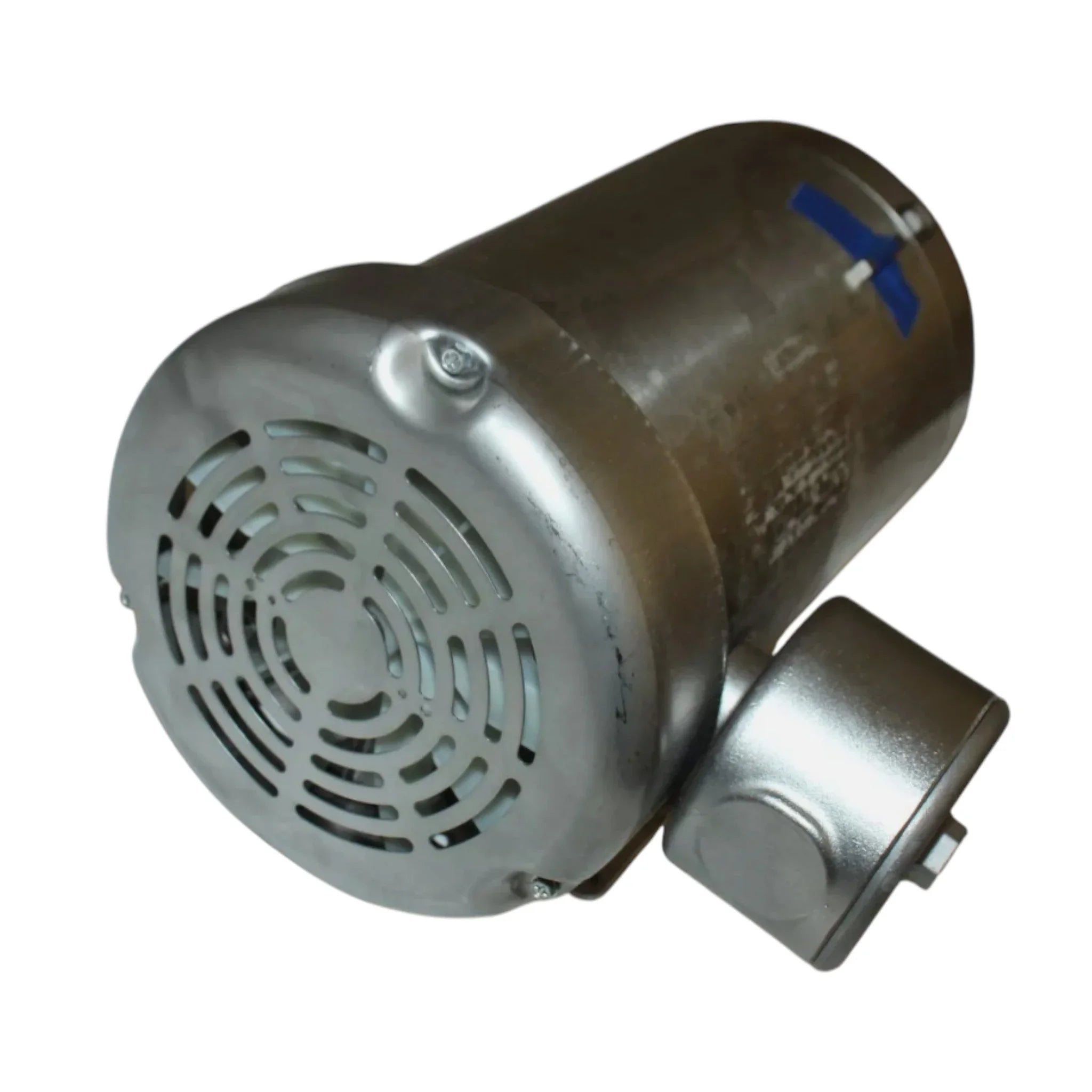

121877.00 Leeson Motor General Purpose Motor
Availability:
Only 1 available in stock
In stock
Pre-Order
Out of stock
121877.00 Leeson Motor General Purpose Motor
This motor general purpose motor from LEESON is designed to deliver reliable performance and durability.
Key Features
- Designed to match or exceed applicable specifications
- Provides the function required for the intended system or assembly
- Built for dependable performance and service life
- Backed by LEESON quality and engineering.
Specifications
| Brand | LEESON |
| Part Type | Motor General Purpose Motor |
| SKU | 121877.00 |

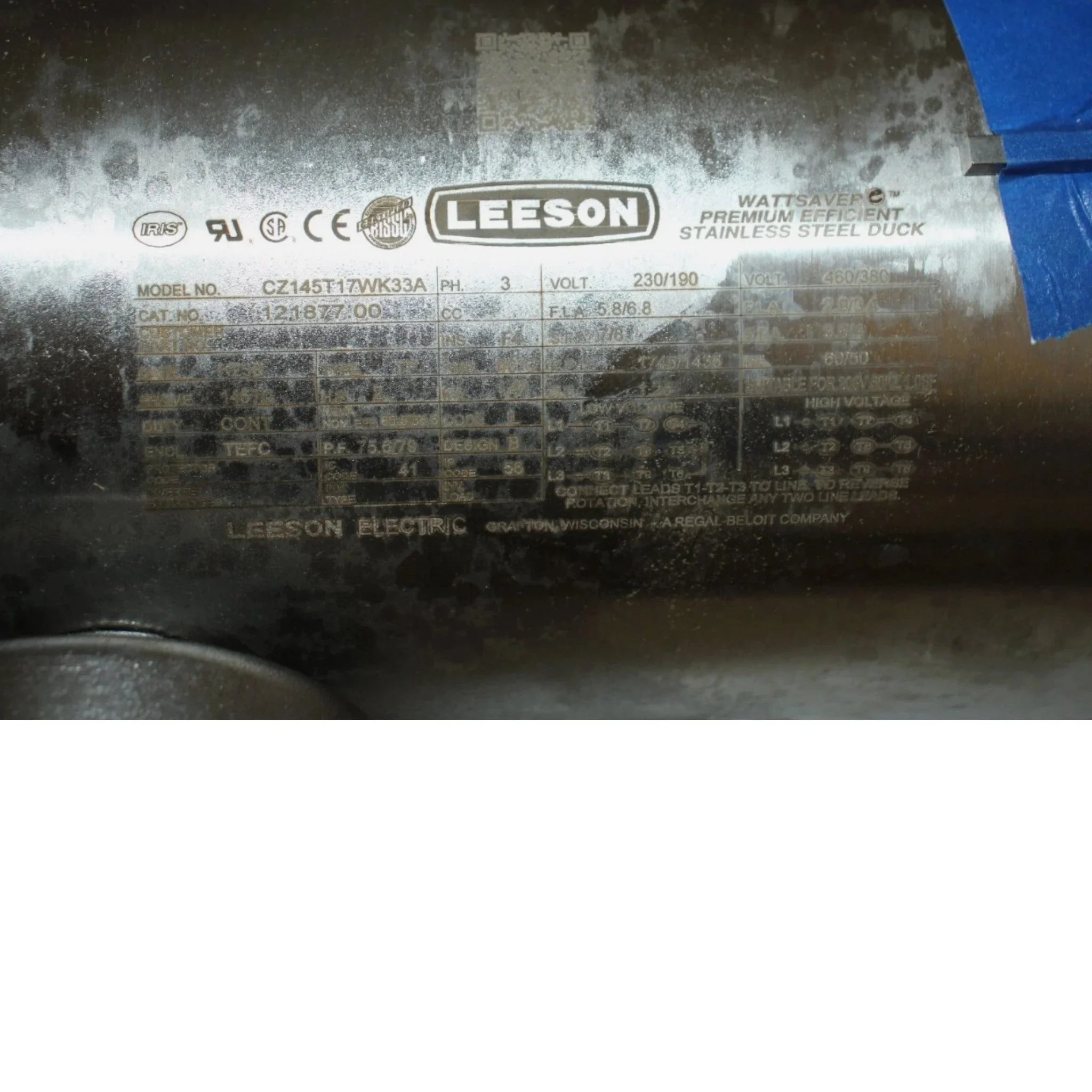

| OEM Cross Reference | CZ145T17WK33A, 712906AT Specifications Item Washdown Motor Ambient Temp. 104°F Application Washdown Bearing Protection Shaft Shield Bearing Type Ball Body Dia. 7.3" Bolt Circle Dia. 5 7/8" Code L Conduit Box Location Exterior Design B Drain Plug (1) Drain Plugs In Conduit Box Duty Cycle Continuous Endshield Material Stainless Steel Finish Unfinished Frame 145TC Frame Material Stainless Steel Frequency 60 Hz Full Load Amps 5.8/2.9A Grease Type Polyrex EM Hp 2 hp Insulation Class Class F Inverter Rating 10:1 Motor Enclosure Design Totally Enclosed Fan Cooled Motor Mounting Position Horizontal Motor Shaft Design Keyed Motor Shaft Rotation Clockwise/Counter Clockwise Motor Type Three Phase Mounting Type Rigid Base Nameplate Rpm 1745 RPM Nema Design B No. Of Speeds 1 Nominal Efficiency 86.5% Overall Length 13 1/4" Packaging B Phase 3 Power 1.49 kW Power Factor 75.6 Removable Base No Rotation Reversible Service Factor 1.3 Shaft Dia. 7/8" Shaft Length 2 1/4" Shaft Material Stainless Steel Thermal Protection Manual Type TF Usable @ 200v No Usable @ 208v No Voltage 230/460V AC Amps 5.8/2.9A Design Code B Drain Plugs (1) Drain Plugs in Conduit Box Drive End Bearing Size 6205 Drive End Bearing Type Ball Duty Cycle Continuous Efficiency 86.5% Electrical Type Squirrel Cage, Inverter Rated Enclosure Type TEFC Frame Length 8 1/4" Frame Material Stainless Steel Frame Type 145TC Frequency 60 Hz Height 12 22/25" Hp 2 hp Hz 60 Ins. Class Class F Insulation Class Class F Ip Code IP56 Kva Code L Kw 1.5 kW Length 17.94" Length Less Shaft 11 1/4" Manufacturers Warranty Length 1 yr. Max. Ambient Temp. 104°F Max. Rpm 1745 RPM Motor Application Washdown Motor Bearings Ball Motor Design 3-Phase Motor Frame Material Stainless Steel Motor Mounting Type Rigid Base Motor Orientation Horizontal Motor Service Factor 1.3 Motor Thermal Protection Manual No. Of Phase 3 No. Of Poles 4 No. Of Speeds 1 Opp. Drive End Bearing Size 6205 Opp. Drive End Bearing Type Ball Power Factor 75.6 Product Type Washdown Motor Resistance Main 6 ohms Rpm 1700-1800 RPM Service Factor 1.25 Shaft Dia. 7/8" Shaft Length 2 1/4" Shaft Type T Standard Logo ul.png Standards CE CERTIFIED, UL RECOGNIZED Starting Method Line Or Inverter Thermal Protection No Protection Voltage 230/460V Width 13.06" |
| UPC | 712906AT |
| Weight | 69.0 lb |
Brand Information
Brand: LEESON
LEESON supplies quality parts and components designed to provide dependable performance and long service life in their intended applications.
Installation Notes
- Verify part number, specifications, and application before installation.
- Professional installation is recommended.
