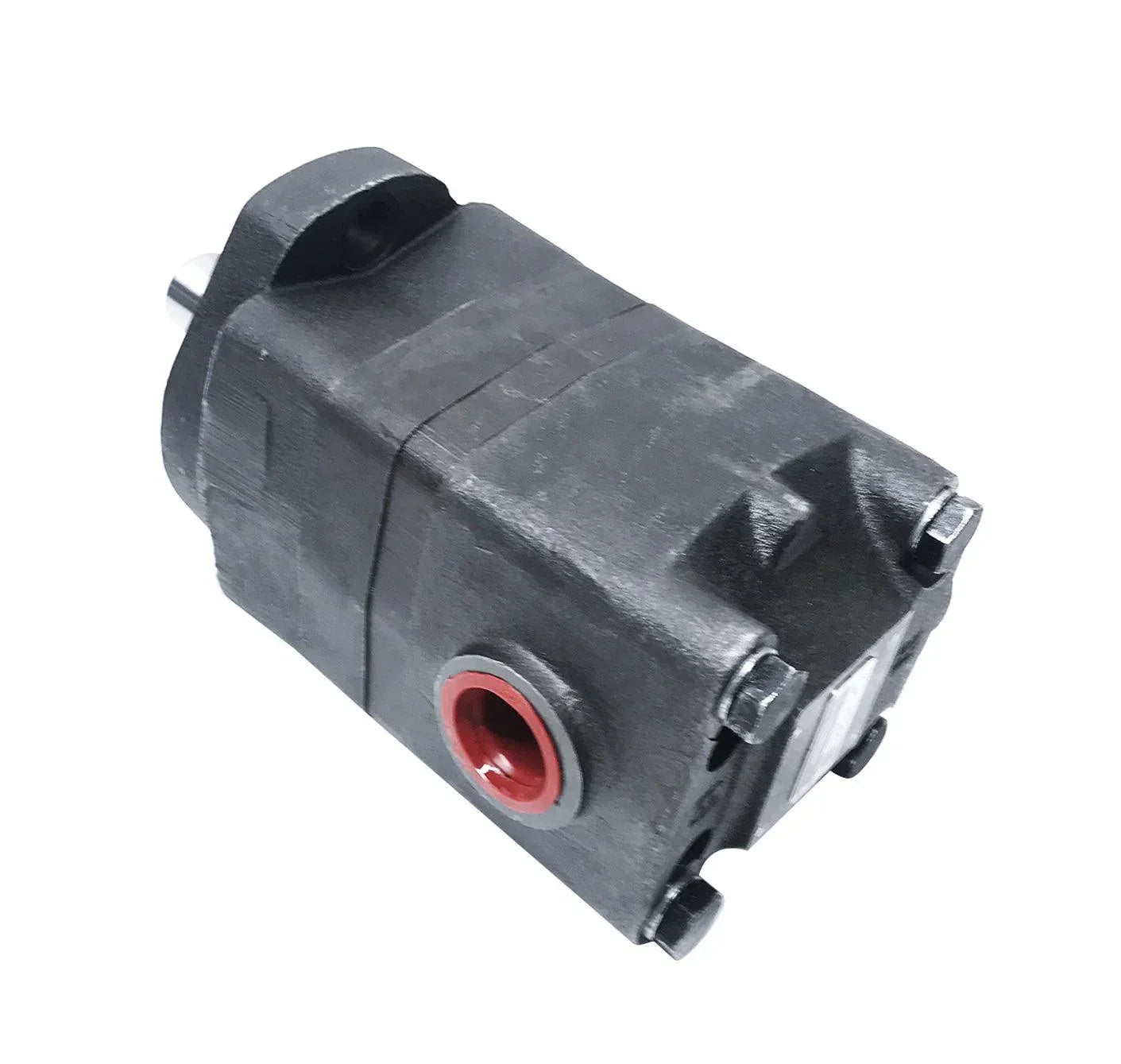

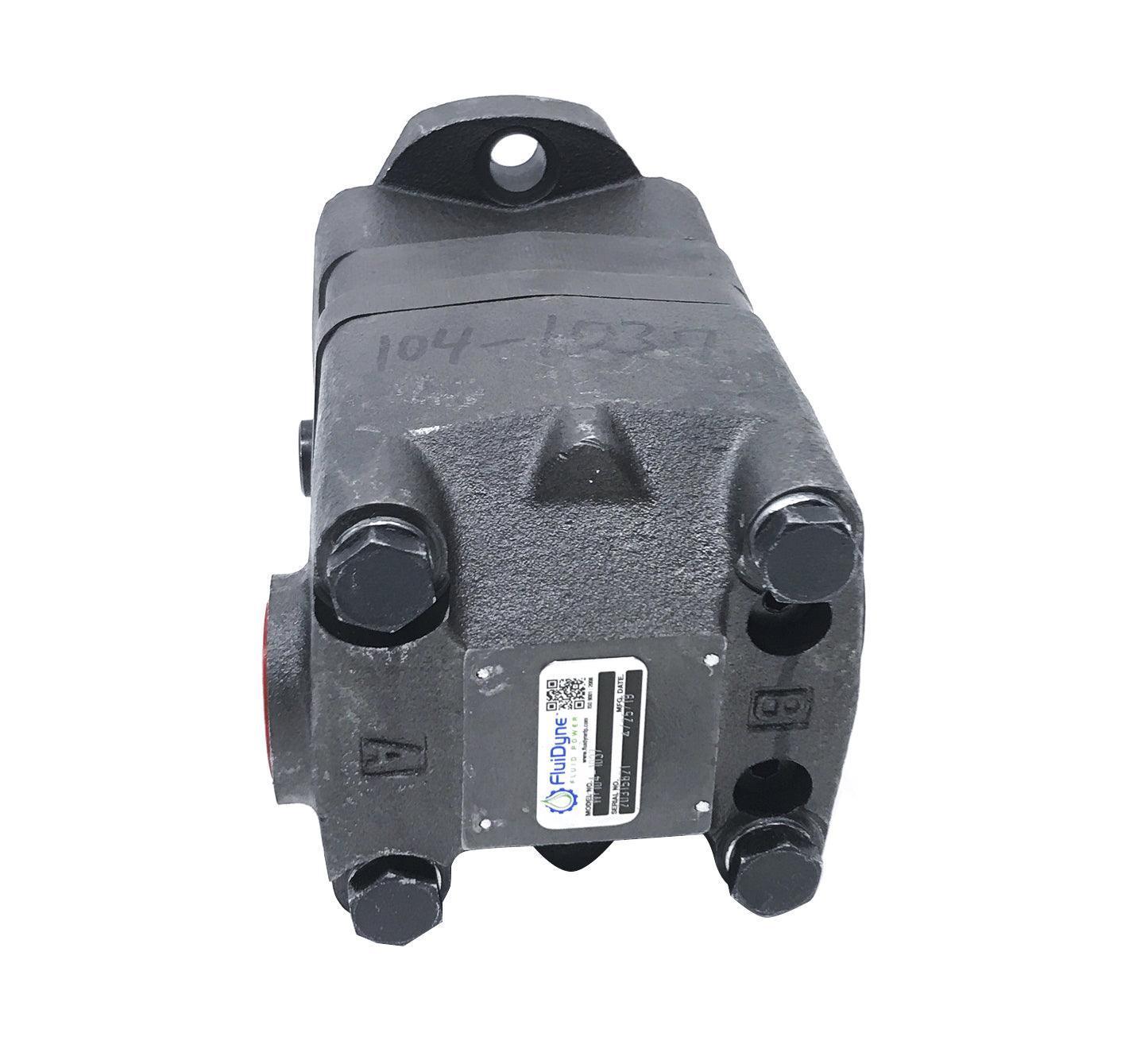

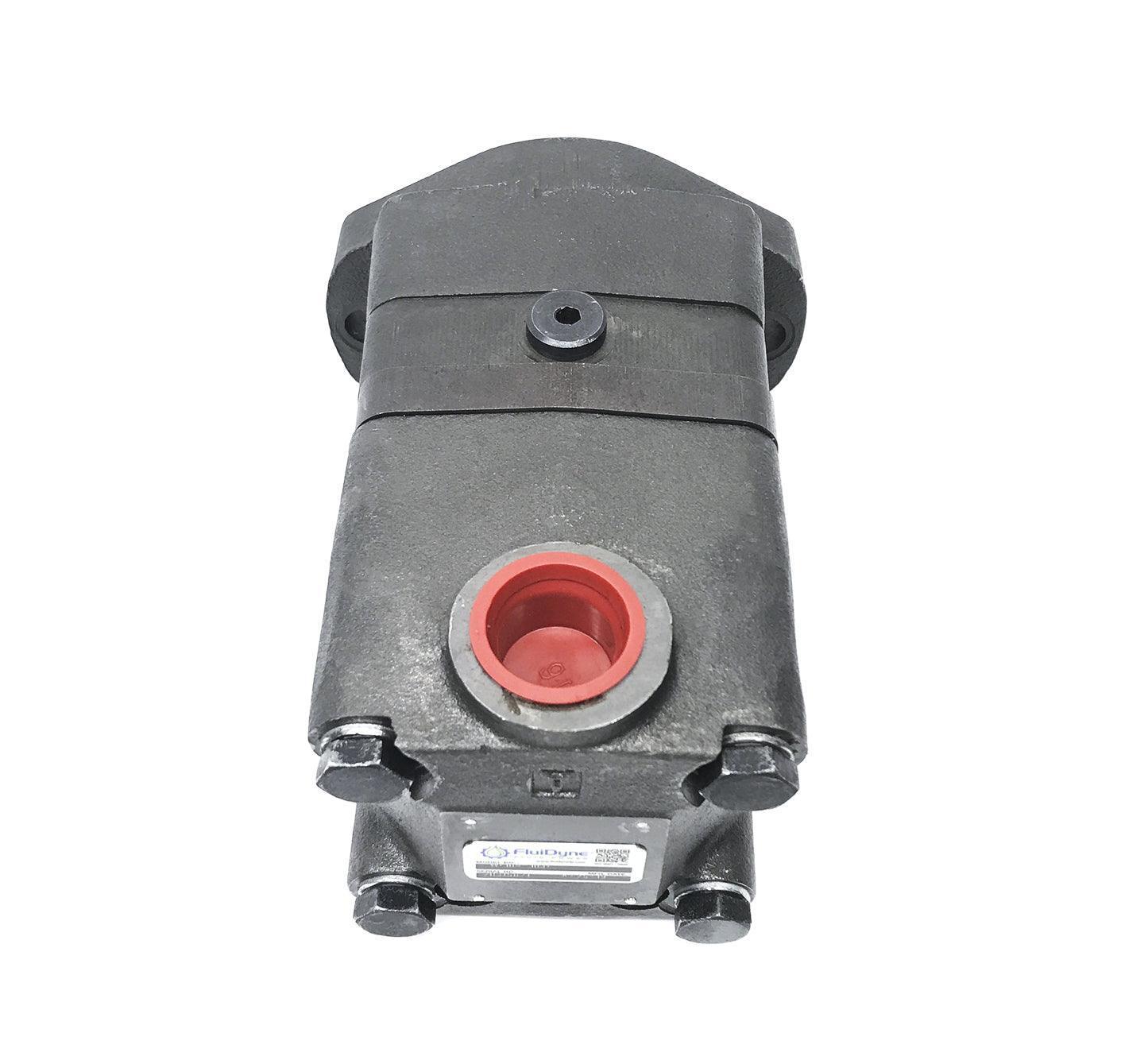

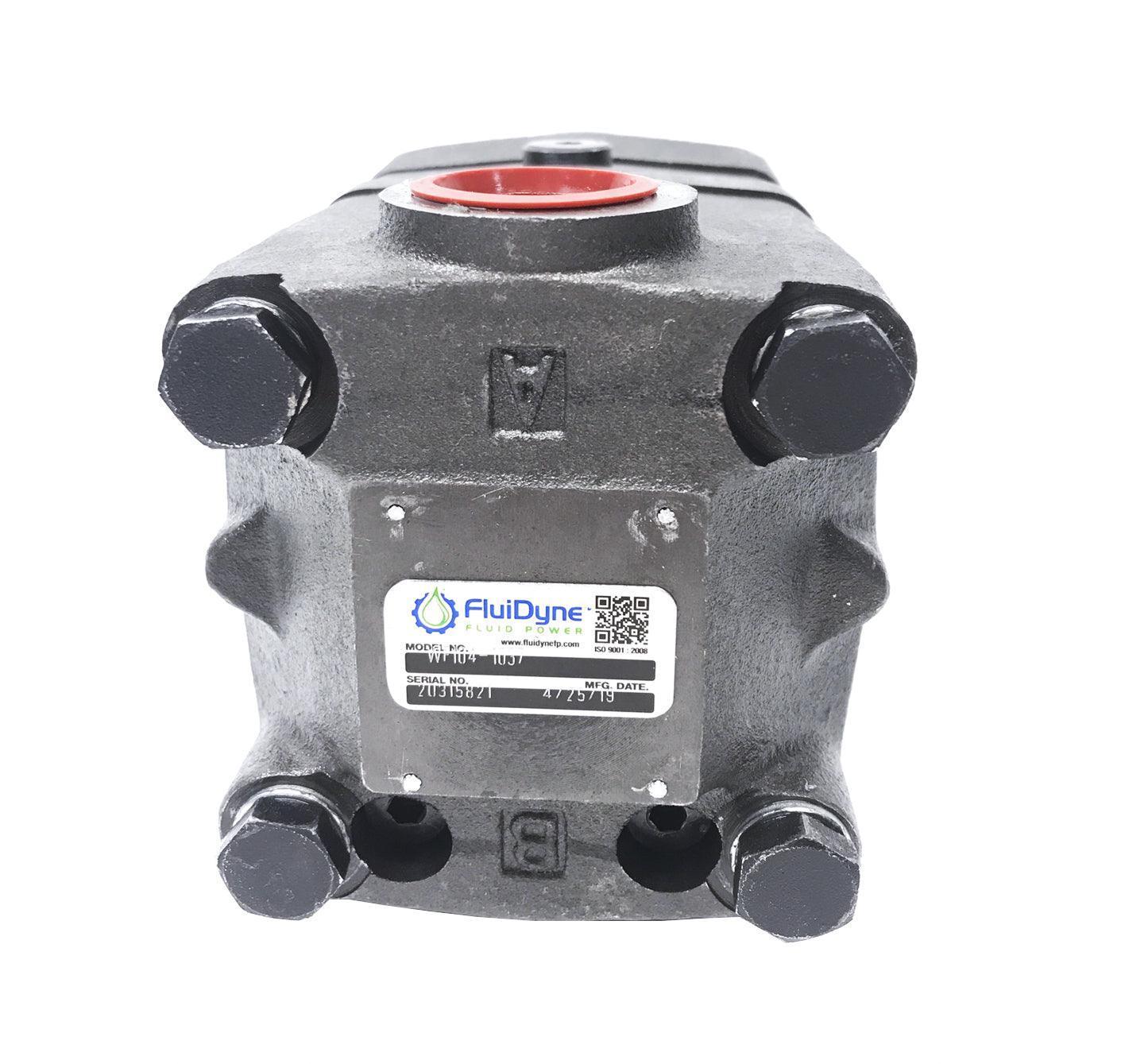

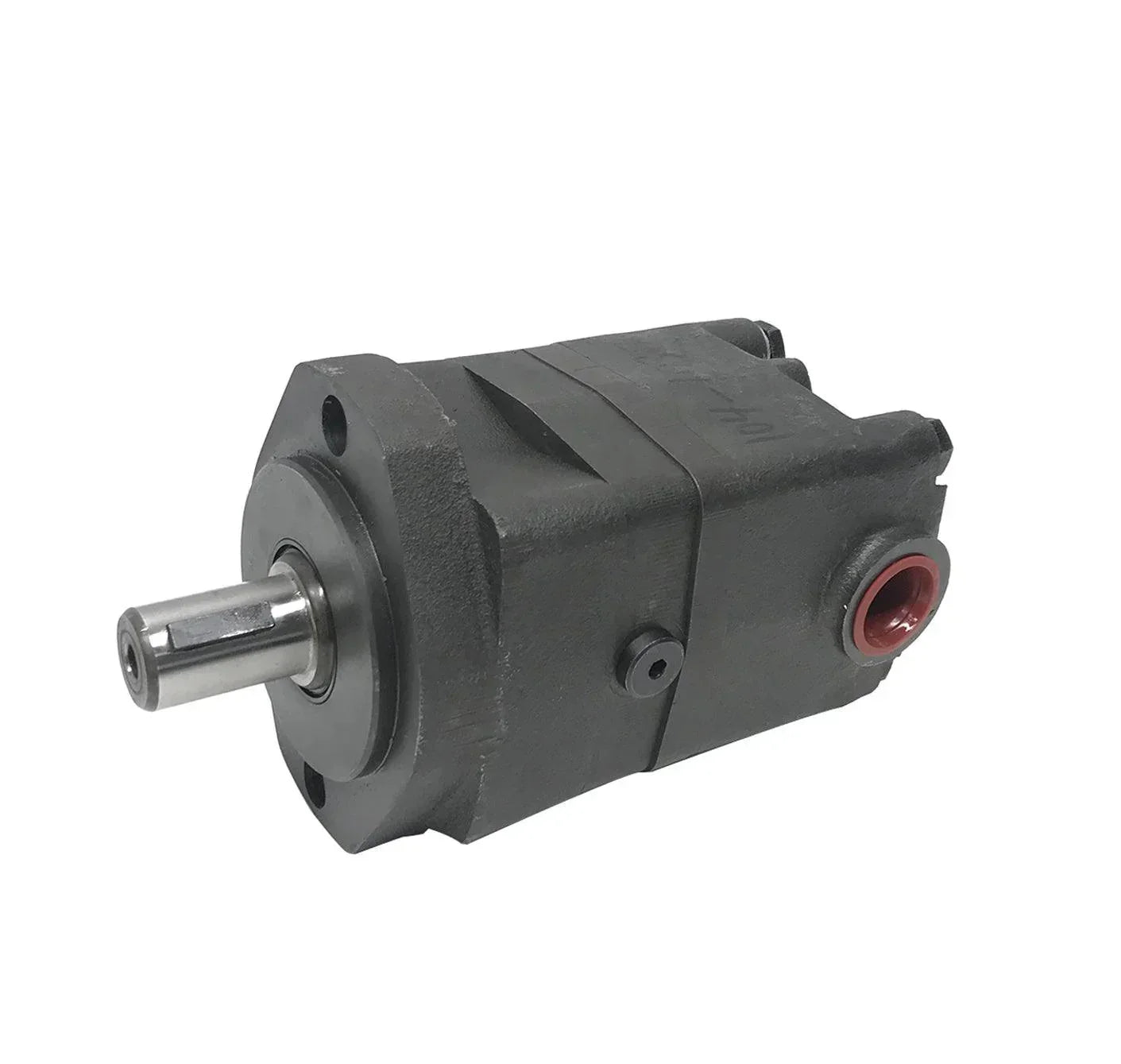

104-1037 Fluidyne Hydraulic Motor 2000 Series Aftermarket Eaton Char-Lynn
This hydraulic motor 2000 series aftermarket eaton char-lynn from FLUIDYNE is designed to deliver reliable performance and durability.
Key Features
- Designed to match or exceed applicable specifications
- Provides the function required for the intended system or assembly
- Built for dependable performance and service life
- Backed by FLUIDYNE quality and engineering.
Specifications
| Brand | FLUIDYNE |
| Part Type | Hydraulic Motor 2000 Series Aftermarket Eaton Char-lynn |
| SKU | 104-1037 |
| OEM Cross Reference | 700514AT Feature Code Description PRODUCT M MOTOR SERIES 02 2000 SERIES DISPLACEMENT 049 80.6 CM3/R [ 4.92 IN3/R] MOUNTING TYPE AC STANDARD, 2 BOLT, 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A OUTPUT SHAFT 01 25.40 [1.000] DIA. STRAIGHT SHAFT ADVANCED TRUCK PARTSWITH .250-20UNC-2B THREAD IN END, 6.35 [.250] WIDE X 25.40 [1.000] DIA. WOODRUFF KEY PORTS AF 1.0625-12 UN-2B SAE O-RING PORTS - PORTS ORIENTED 180 DEG TO EACH OTHER CASE FLOW OPTION 01 .4375-20 UNF-2B SAE O-RING PORT LOW PRESSURE RELIEF 0 NONE PRESSURE FLOW OPTION 00 NONE GEROLER OPTION 1 STANDARD SEAL OPTION 0 STANDARD ACCESSORIES 00 NONE SPECIAL FEATURES (HARDWARE) 00 NONE SPECIAL FEATURES (ASSEMBLY) 00 NONE PAINT/PACKAGING AA NO PAINT |
| UPC | 700514AT |
| Weight | 20.0 lb |
Brand Information
Brand: FLUIDYNE
FLUIDYNE supplies quality parts and components designed to provide dependable performance and long service life in their intended applications.
Installation Notes
- Verify part number, specifications, and application before installation.
- Professional installation is recommended.
